Why Manual Scan-to-CAD Drafting is Killing Your Margins

The Surveyor's Dilemma: An Example

Consider a two-person surveying firm (an example, not a real client). This month it has 10 as-built jobs from one property manager, each a building of about 2,000 sq ft (186 m²). The scanning goes well: the two partners capture all ten buildings in one or two days in the field.

Then comes the drafting.

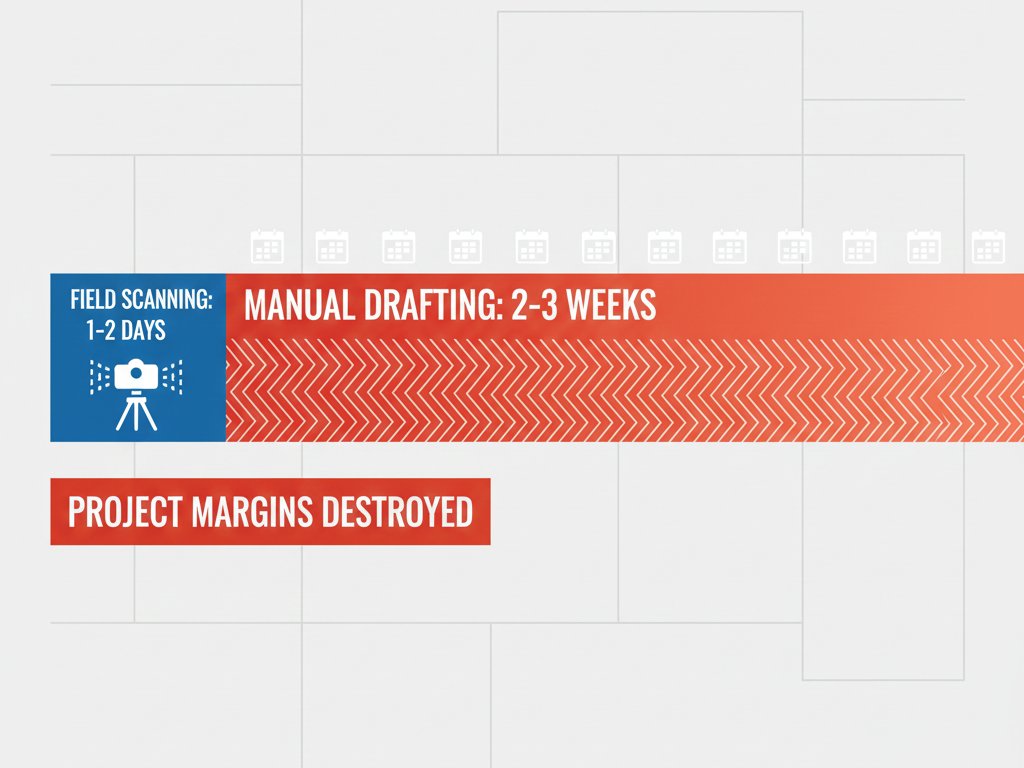

Each building takes about 16 hours of tracing walls, doors and windows over the point cloud in AutoCAD, plus 2 hours of revisions after the client's feedback. That's 180 hours for the month: 90 hours each, or two to three weeks of both partners' time at a desk.

At $42/hour (an example rate for a senior CAD technician's time; use your own), that's $756 per building and $7,560 for the month. If the firm charges $1,500 per job (also an example), drafting eats half of every fee before scanning, travel, equipment and overhead are paid.

Many surveyors, architects, and engineers who still rely on manual scan-to-CAD workflows are in this position. We use this example throughout the article.

The Real Math: What Manual Drafting Actually Costs

Let's break down the true cost of manual scan-to-CAD drafting. The hours below are typical estimates for an experienced technician, and $42/hour is an example rate: swap in your own hours and costs.

Time Investment: The Industry Reality

Here's roughly how long manual drafting takes, by building size. The labor cost is the hours × $42/hour.

These times assume an experienced CAD technician working efficiently. For less experienced staff or complex geometries, times can be even longer. Our example building sits in the medium row, at 16 hours.

The Hidden Costs You're Not Counting

But labor cost is just the tip of the iceberg. Manual drafting has hidden costs that eat into margins:

Why Manual Drafting is Still the Default (And Why That's a Problem)

Despite the high costs, most firms still default to manual drafting. Here's why—and why those reasons don't hold up:

"We've Always Done It This Way"

Familiarity breeds comfort. If your team has been manually tracing point clouds for years, it feels safe. But "we've always done it this way" is the most expensive phrase in business.

Every industry has been disrupted by automation. Surveying and CAD drafting are no different. The firms that adapt first will have a massive competitive advantage.

"Automation Isn't Accurate Enough"

Automated models have come a long way. ScanToBIM-CAD models are accurate to 2-3 cm: enough for floor plans and as-built models, though not for survey-grade work. For projects that need sub-centimeter precision, you can still draft by hand, but those are the exception, not every project.

For the rest, automation is not just "good enough"—it's often more consistent than manual work, which varies with technician skill and fatigue. And you don't have to take it on trust: your card is charged only when the model is delivered, and nothing if the AI can't produce a reliable one.

"We Don't Have Time to Learn New Tools"

Ironically, this is the most self-defeating argument. You're spending 18 hours per project on drafting and revisions, but can't spare an afternoon to try a tool that cuts that to about an hour of checking?

Modern scan-to-CAD tools are designed for simplicity. If you can upload a file and click "download," you can use them: upload the scan, check the model against it, download the files. The learning curve is short.

The Math: Manual vs Automated Cost Comparison

Here is our example in full. Say you're a surveyor doing 10 as-built floor plans a month, each of a building of about 2,000 sq ft, and your technician's time costs $42/hour (an example rate; use your own):

Even if you're more conservative and assume only 5 projects per month, you still save $3,425 a month ($685 per project), or $41,100 a year.

What about outsourcing? Sending the drafting out isn't automatically cheaper. One US scanning firm publishes $1.00-$7.00 per sq ft for a Revit model (its published rates), and firms that scan and draw often set a minimum fee, such as $2,500, with 5-10 business days as the standard turnaround (an as-built drawings price guide). We do that math in the real cost of outsourcing scan-to-CAD work.

Opportunity Cost: What You're Really Losing

Labor cost is only part of the story. The bigger issue is opportunity cost—what you could be doing instead.

Lost Billable Hours

Your senior CAD technician is your most valuable asset. When they're spending 18 hours tracing and revising a floor plan, they're not:

• Working on higher-value design projects
• Doing billable field work
• Training junior staff
• Pursuing new business opportunities
• Improving your firm's processes

If that technician could bill design work at $65/hour (another example rate) instead of drafting at a cost of $42/hour, every drafting hour gives up $23 of margin. Over the 17 hours automation frees per project, that's $391 per project, or $3,910 a month in our example.

Reduced Project Capacity

Manual drafting creates a bottleneck. In our example, ten projects take 180 hours of drafting and revisions a month: more than one full-time technician (about 160 working hours a month). With automation, checking the same ten models takes about 10 hours, and each model usually arrives within a few hours of upload (in October 2026, typically about 3 hours). The same staff can take on far more projects.

That's not just cost savings—that's revenue growth. More projects = more revenue, without hiring more staff.

ROI Calculator: When Automation Pays for Itself

Here is the return on the same example, per project and per year, plus a formula for your own numbers. Software is left out on both sides, because you keep AutoCAD or Revit either way.

Your own numbers: monthly savings = projects per month × [(drafting hours + revision hours - checking hours) × your hourly cost - $29]. For our example: 10 × [(16 + 2 - 1) × $42 - $29] = 10 × $685 = $6,850.

For a firm doing just 3 projects a month, the same math gives $2,055 a month ($685 × 3), or $24,660 a year. The savings come from labor, not from software, which is why they hold even at low volumes.

Common Objections (And Why They're Wrong)

"But We Charge Clients for Drafting Time"

Yes, you do. But here's the thing: clients are getting smarter. They know automation exists. If you're charging $1,500 for drafting that costs $71 with automation ($29 per scan plus an hour of checking in our example), they'll eventually find someone who doesn't.

Better strategy: Use automation to reduce your costs, then compete on price or speed. Win more projects by offering faster turnaround or lower prices while maintaining healthy margins.

"Our Clients Demand Manual Precision"

Do they, though? Most clients care about accuracy and speed, not the method. ScanToBIM-CAD models are accurate to 2-3 cm, which is enough for most as-built floor plans and models.

For the projects that need sub-centimeter precision, you can still offer manual drafting as a premium service. But don't let the exceptions set the cost of everything else.

"We Can't Afford to Change Our Workflow"

You can't afford not to. In our example, every month you wait costs $6,850. Trying it costs $29 on one scan, charged only when the model is delivered.

The Bottom Line: Manual Drafting is a Margin Killer

The numbers don't lie. Manual scan-to-CAD drafting is destroying your profitability:

• High labor costs: $336-$1,680 per project (8-40 hours at $42/hour)
• Slow turnaround: 2-3 weeks to draft a month's ten buildings in our example
• Limited capacity: Can't scale without hiring
• Revisions: 2-4 more hours per project
• Opportunity cost: Skilled staff stuck on low-value work

Automation solves all of these problems:

• Low cost: $29 per scan for a native Revit file, an IFC model and a DXF floor plan of every story, charged only when the model is delivered
• Fast turnaround: models usually arrive within a few hours (in October 2026, typically about 3 hours)
• Scales with your work: pay per scan, with no subscription and no minimum
• Charged only on delivery: each model is checked against your scan before it's delivered, you can inspect it on your own point cloud, and if the AI can't produce a reliable model, nothing is charged
• Frees up staff: about an hour of checking per project instead of 18 hours of drafting and revisions

The question isn't whether to automate—it's how quickly you can start. Every day you delay is money left on the table.

Conclusion: Stop Losing Money on Manual Drafting

Manual scan-to-CAD drafting was necessary 10 years ago. Today, it's a choice—and for most as-built floor plans, it's the wrong one for your margins.

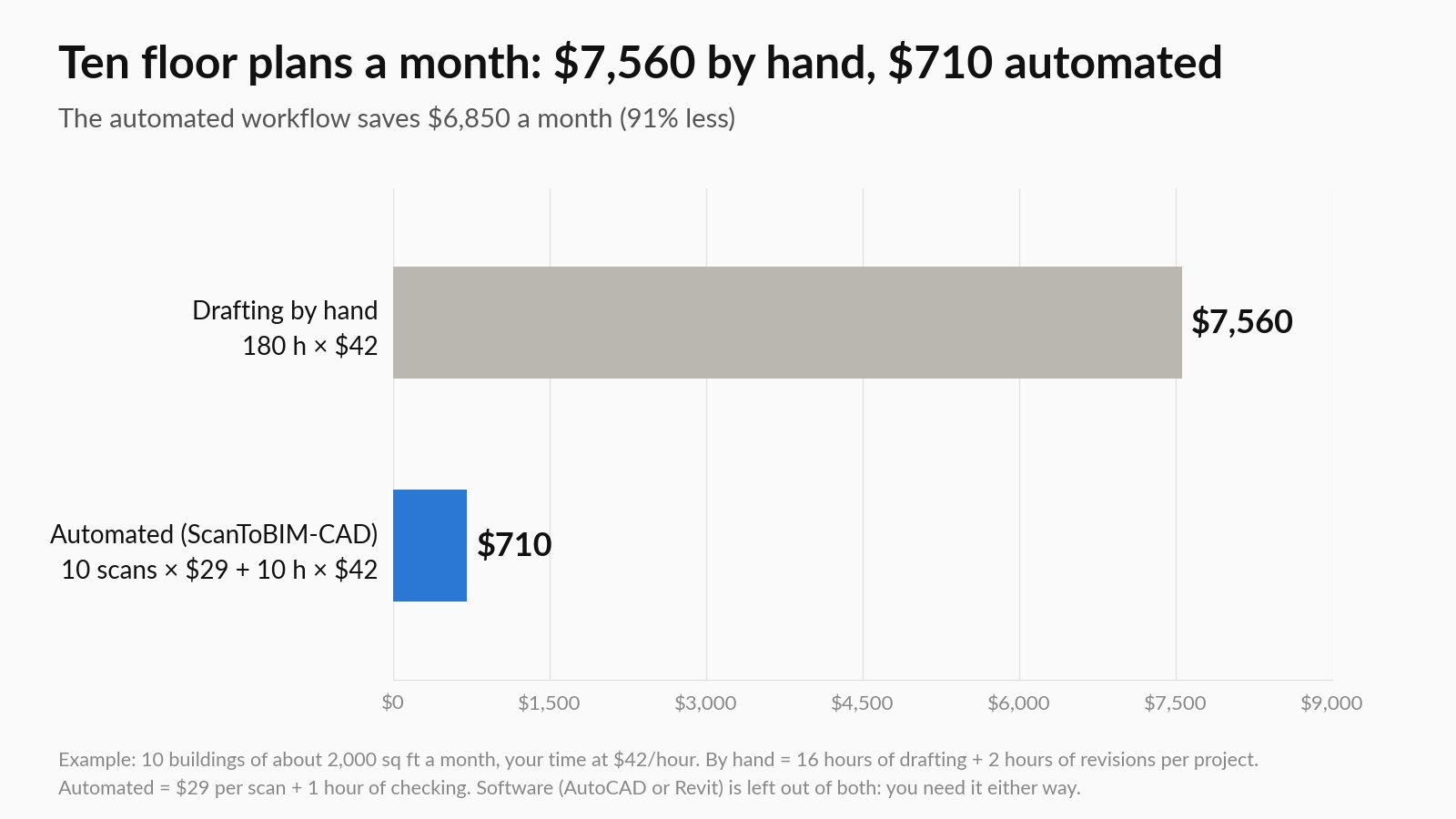

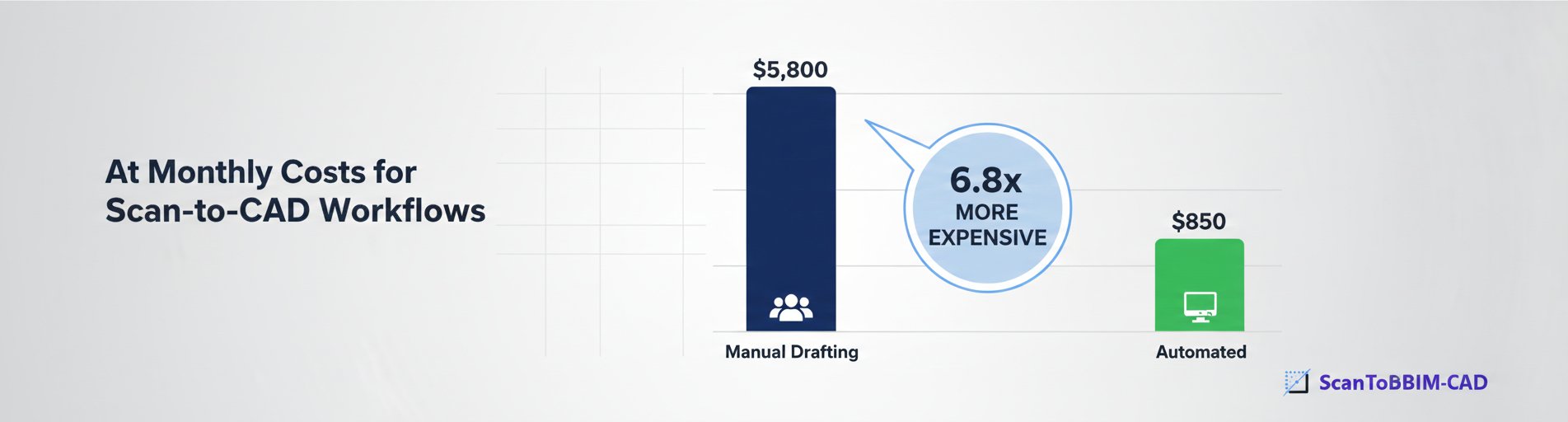

In our example, ten floor plans a month cost $7,560 to draft by hand and $710 automated: $6,850 a month, or $82,200 a year, back in the business. Even at 3 floor plans a month, the difference is $2,055 a month.

Ready to stop killing your margins? Upload your point cloud (E57, LAS, LAZ or PLY) and view it in 3D for free. Order the AI model and you get it on your own scan, usually within a few hours: $29 per scan, charged only when it is delivered, for a native Revit file (Revit 2024 or later), an IFC model, and a DXF floor plan for every story of the whole building.

Want to learn more? Read our complete point cloud to floor plan conversion guide, or see how automated scan to BIM compares with a scan-to-BIM service.
