How to Convert Point Cloud to Floor Plan [2026 Guide]

The Problem: Manual Tracing is Costing You Time and Money

If you're a surveyor, architect, or engineer working with laser scans, you know the pain all too well. You've captured a perfect point cloud of a building interior—millions of precise 3D points showing every wall, door, and window. But now comes the hard part: converting that point cloud into a usable 2D floor plan.

The traditional workflow is brutal:

1. Import the point cloud into AutoCAD or Revit
2. Manually trace every wall, door, and window over the point cloud
3. Clean up the geometry, fix errors, and add annotations
4. Export the final DXF or DWG file

For a small 100m² office space, you're looking at a full day of work. For a 500m² commercial space? That's 12-20 hours of tedious tracing, spread over two or three days.

There has to be a better way.

Method 1: The Traditional Manual Workflow

Let's start by understanding the traditional approach that most professionals still use today. This method works, but it's slow, expensive, and prone to errors.

Step 1: Convert Point Cloud to ReCap Format

First, you need to convert your point cloud file to a format that AutoCAD and Revit can work with. AutoCAD and Revit work with point clouds in Autodesk's ReCap formats (RCP/RCS), not with raw E57 or LAS files, so the usual route is to convert them in Autodesk ReCap Pro first.

Your original scan formats:

• E57 - From terrestrial scanners (Faro, Leica, Trimble)
• LAS/LAZ - From LiDAR scanners and mobile mappers
• PLY - From Matterport or photogrammetry

Conversion process:

1. Open Autodesk ReCap Pro (separate software, requires license)
2. Import your E57, LAS, or PLY file into ReCap
3. ReCap will process and register the point cloud (can take 15-30 minutes for large files)
4. Export from ReCap as RCP (ReCap Project) or RCS (ReCap Scan) format

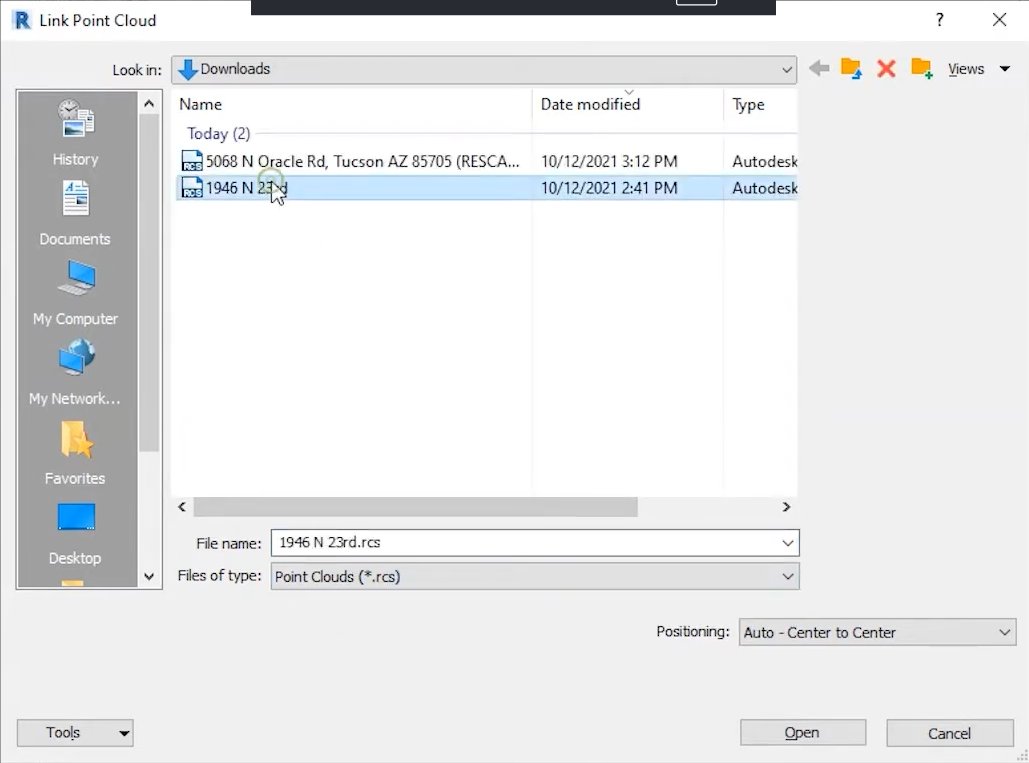

Step 2: Import RCP/RCS into CAD Software

Once you have the RCP or RCS file from ReCap, you can import it into AutoCAD or Revit:

• AutoCAD: Use the POINTCLOUDATTACH command and select your RCP/RCS file
• Revit: Go to Insert tab → Point Cloud → select your RCP/RCS file

The point cloud can be massive—hundreds of megabytes or even gigabytes—so this import step can take several minutes, especially for large projects.

Step 3: Manually Trace Walls

This is where the real work begins. You'll need to:

1. Set up your view to see the point cloud clearly (usually a top-down plan view)
2. Zoom in and start tracing wall lines, following the point cloud data
3. Draw each wall segment as a line or polyline
4. Ensure walls are properly connected at corners
5. Check for accuracy against the point cloud

For a typical office space with 20-30 rooms, you might be drawing 100+ wall segments. Each one needs to be precisely aligned with the point cloud data below it.

Step 4: Add Doors and Windows

Once walls are traced, you need to identify and mark openings:

• Door openings (typically 0.9m wide for interior doors, but you need to check for each case.)
• Window openings (vary by building type)
• Archways and other openings

You'll need to carefully examine the point cloud to identify these features, as they're not always obvious from a top-down view. This often requires switching between different views (plan, section, 3D) to confirm what you're seeing.

Step 5: Clean Up and Refine

After the initial tracing, you'll spend significant time:

• Fixing wall connections and corners
• Removing duplicate lines
• Ensuring proper wall thickness
• Adding dimensions and annotations
• Checking for missing walls or rooms

Step 6: Export Final File

Finally, export your completed floor plan as a DXF or DWG file that can be used in other CAD software or shared with clients.

Time Breakdown for Manual Method

For a typical 200m² residential floor plan:

For larger commercial spaces (500m²+), this can easily stretch to 12-20 hours.

Method 2: AI-Powered Automated Conversion

What if you could skip the manual tracing entirely? That's where AI-powered point cloud conversion comes in.

ScanToBIM-CAD, our point cloud to BIM software, finds the stories in your scan and models the whole building automatically, inside and out. The AI models:

Interiors and exteriors are both modeled, and every story comes back from one upload. Building services (pipes, ducts, electrical) and furniture are not modeled.

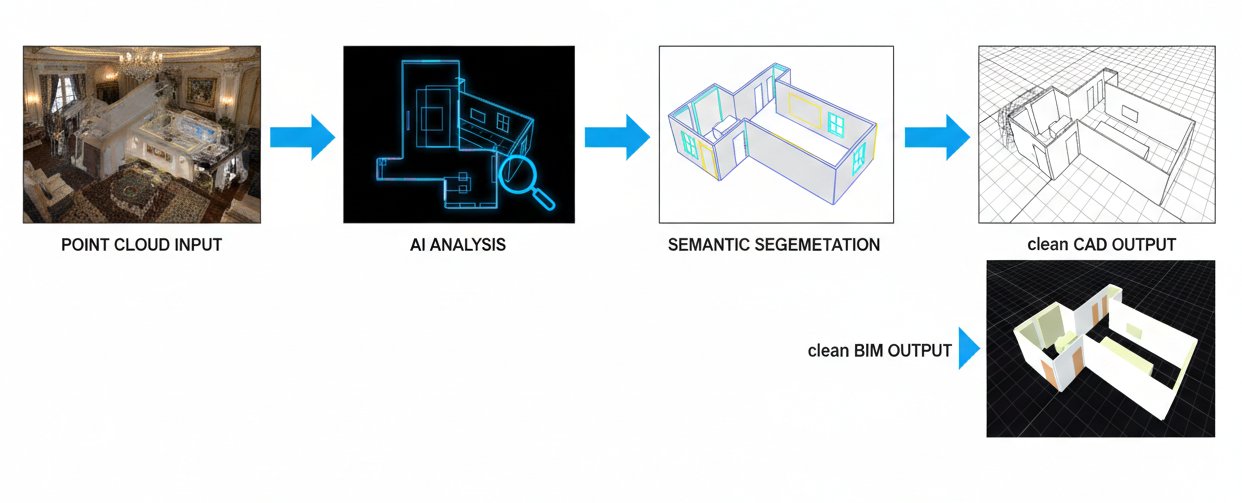

How It Works: The AI Detection Process

Automated conversion generally works in three steps:

1. Point Cloud Analysis: The AI finds the stories in the scan, then the surfaces that make up walls, floors, ceilings and roofs, and the openings in them
2. Semantic Segmentation: Each region of points is classified as wall, door, window, slab, ceiling, roof, column, stair, or other
3. Geometry Extraction: The detected elements are turned into clean BIM/CAD geometry (a Revit and IFC model plus DXF floor plans) and checked against your points before delivery

Step-by-Step: Using ScanToBIM-CAD

Here's exactly how to convert your point cloud using our automated tool:

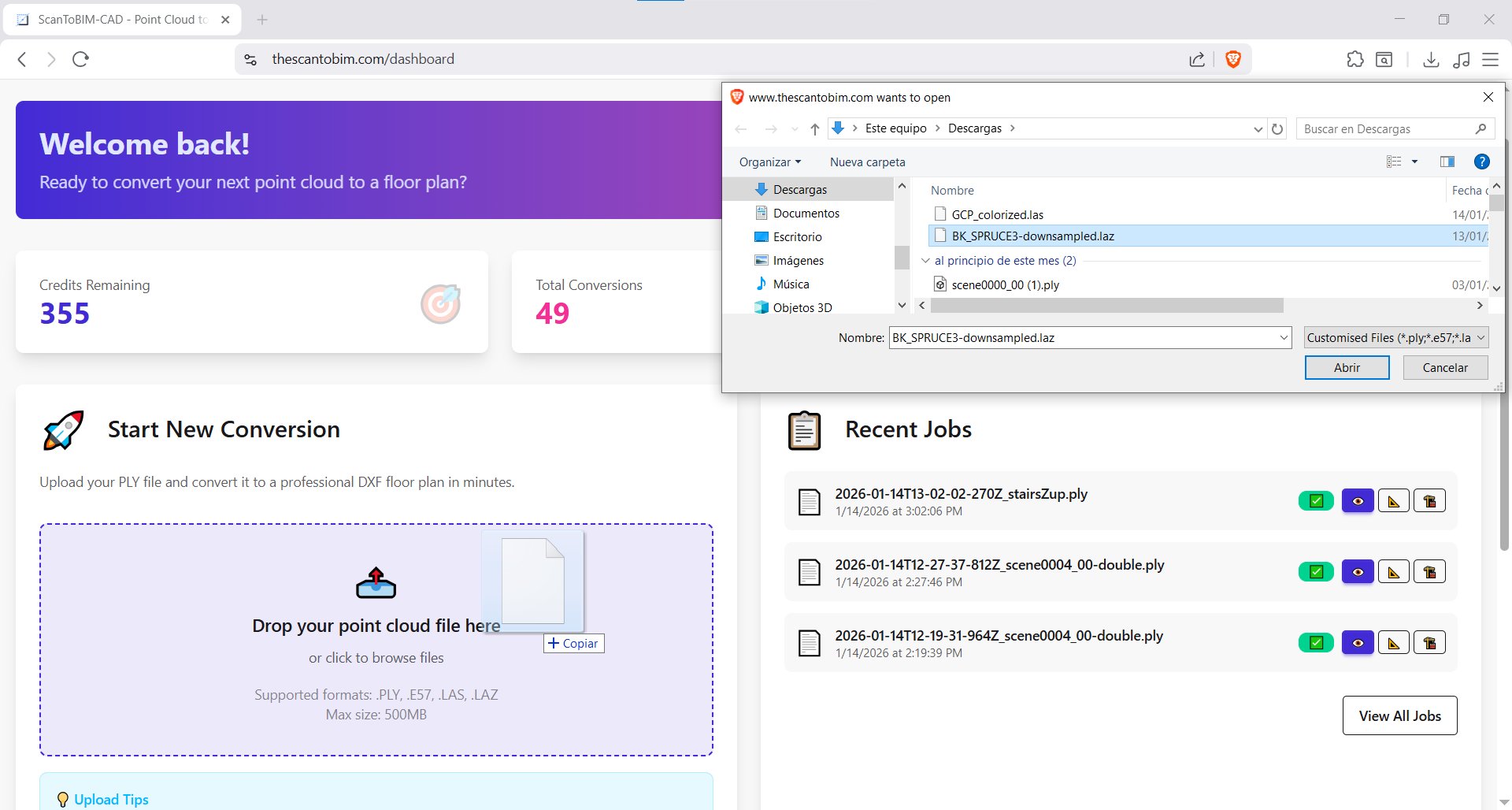

Step 1: Upload Your Point Cloud

Go to ScanToBIM-CAD and create a free account. Uploading and viewing your scan in 3D are free. The AI model is $29 per scan for the Revit (RVT), IFC and DXF files of every story: you order it when you upload, and your card is charged only when the model is delivered. On the upload screen, click "Request AI modeling — $29 per scan", or "Upload and model it yourself" to draw your own plan in the editor.

Upload your point cloud file directly—no ReCap conversion needed! We support:

• PLY - ASCII or binary format
• E57 - From Faro, Leica, Trimble scanners (no ReCap needed!)
• LAS - Standard LiDAR format (no ReCap needed!)
• LAZ - Compressed LAS (automatically decompressed)

Just drag and drop your file. Large scans are fine: files over 20 GB have been processed. There's no ReCap step, which saves you the 15-30 minutes and the separate ReCap license that the manual method requires. Have a ReCap project? Export it to E57 first. FARO .fls or another scanner's native format? Export E57 from the scanner's own software.

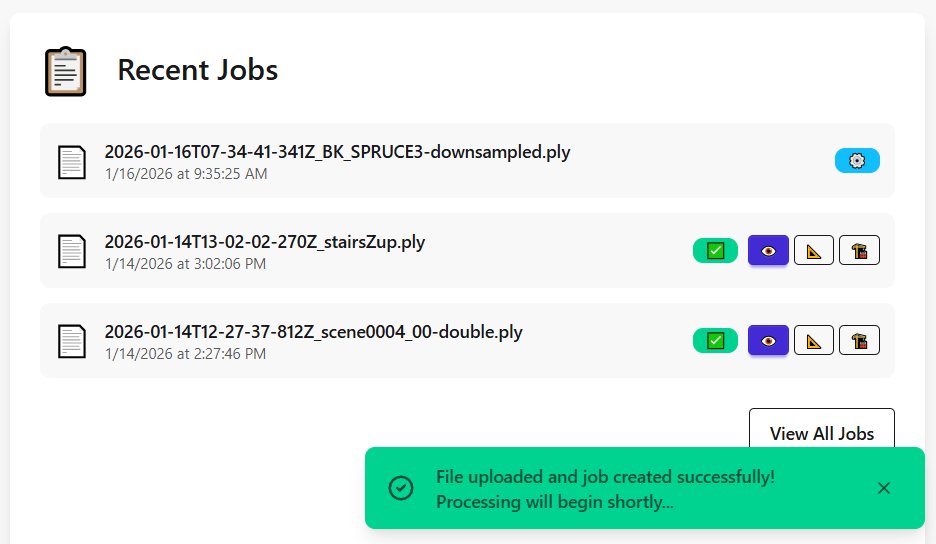

Step 2: Your Scan in 3D Within Minutes, the Model Within a Few Hours

Once uploaded, the pipeline automatically:

• Reads your file and opens it in the 3D viewer — this usually takes a few minutes and is free
• Finds the stories (floors) in the point cloud
• Models walls (straight, diagonal and curved), doors, windows, floor slabs, ceilings, roofs, columns and stairs, inside and out
• Checks the model against your points before it is delivered — if the AI can't produce a reliable model, nothing is charged

You get an email when your model is ready: usually within a few hours (in October 2026, typically about 3 hours after upload). Your card is charged the $29 only then; if the AI can't produce a reliable model, nothing is charged.

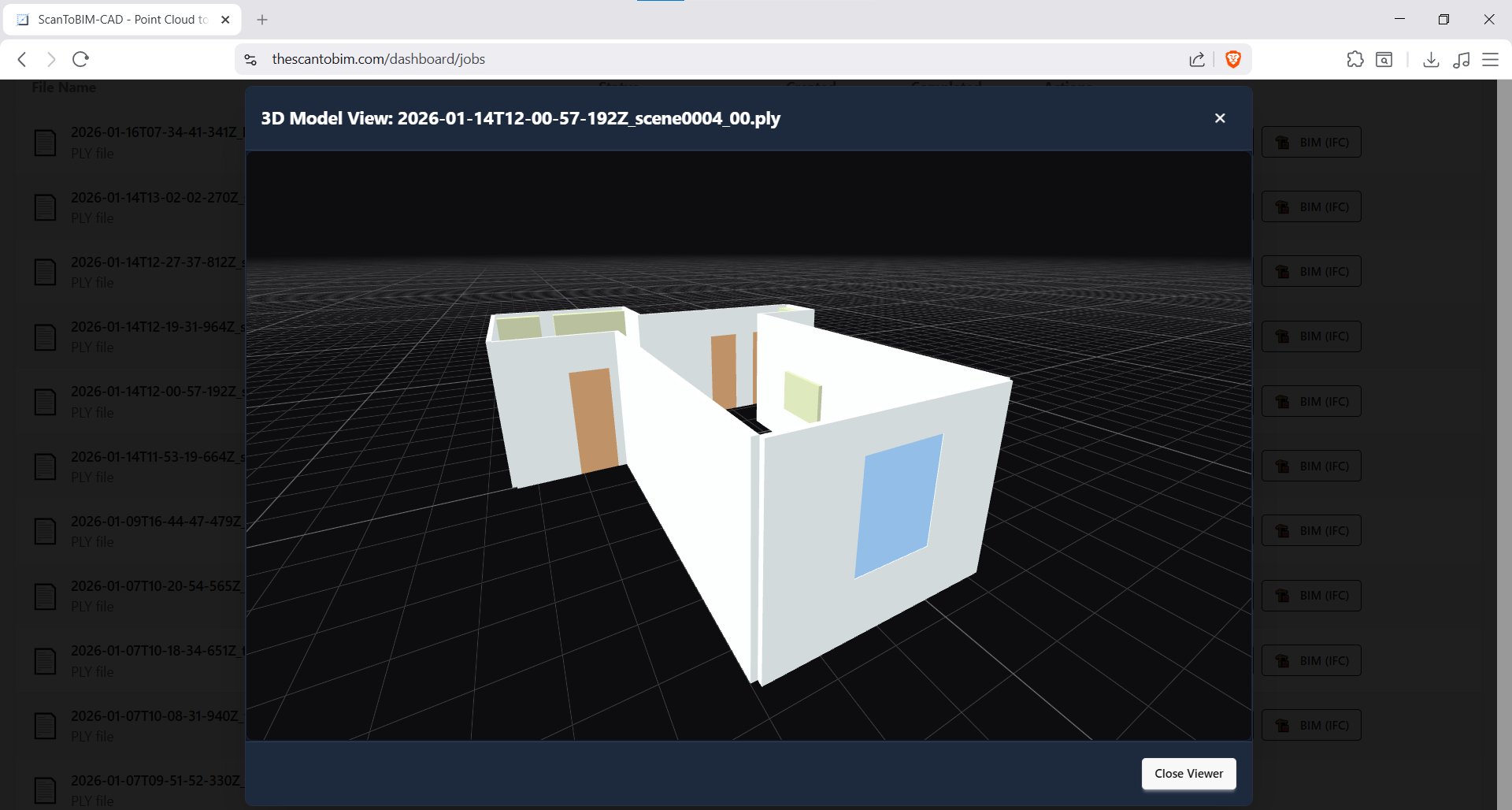

Step 3: Review Results in 3D Viewer

When the model is ready, the result page shows it on your own point cloud, not on a sample. You can:

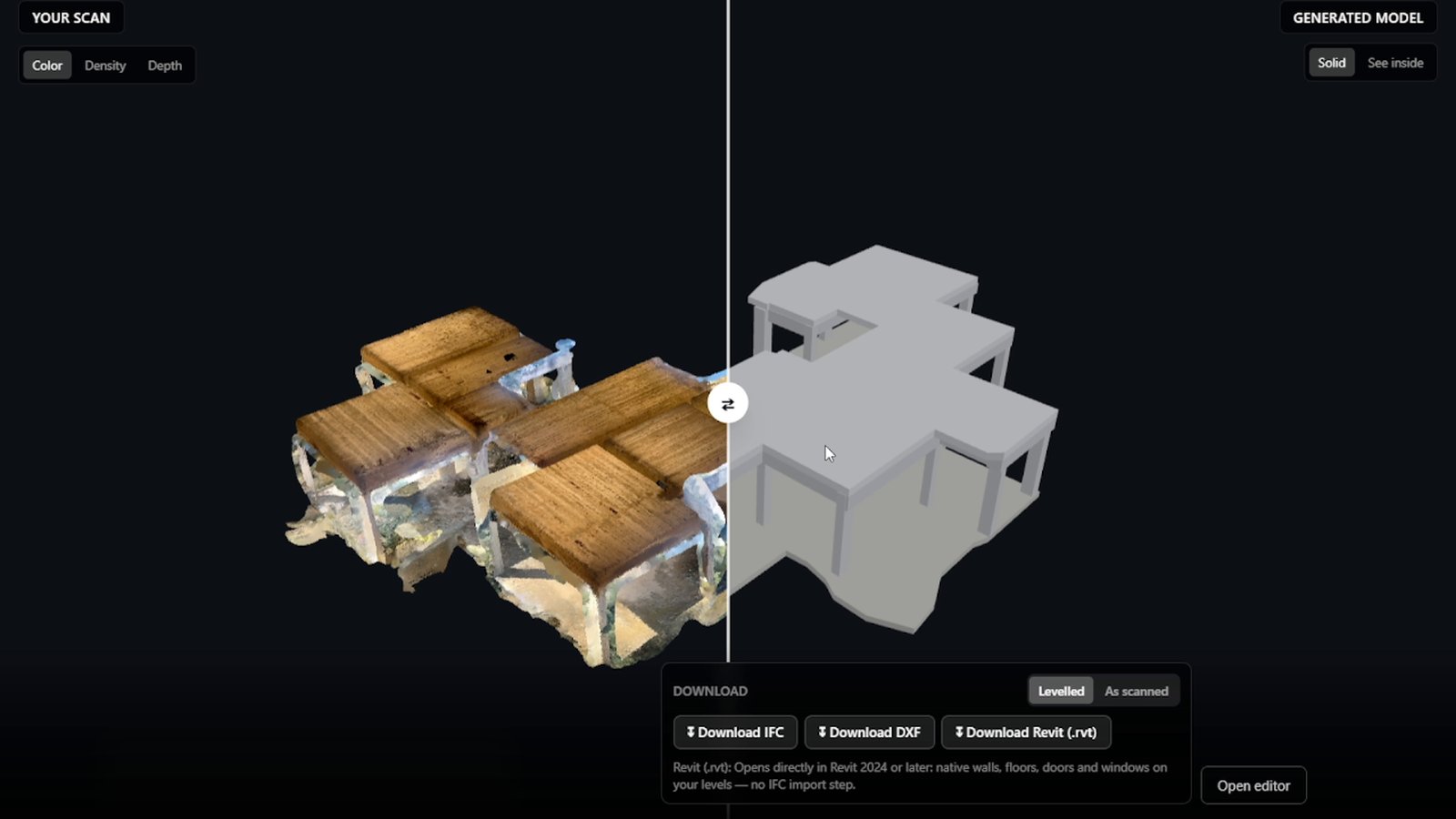

• Drag the curtain between your scan and the model to compare them wall by wall

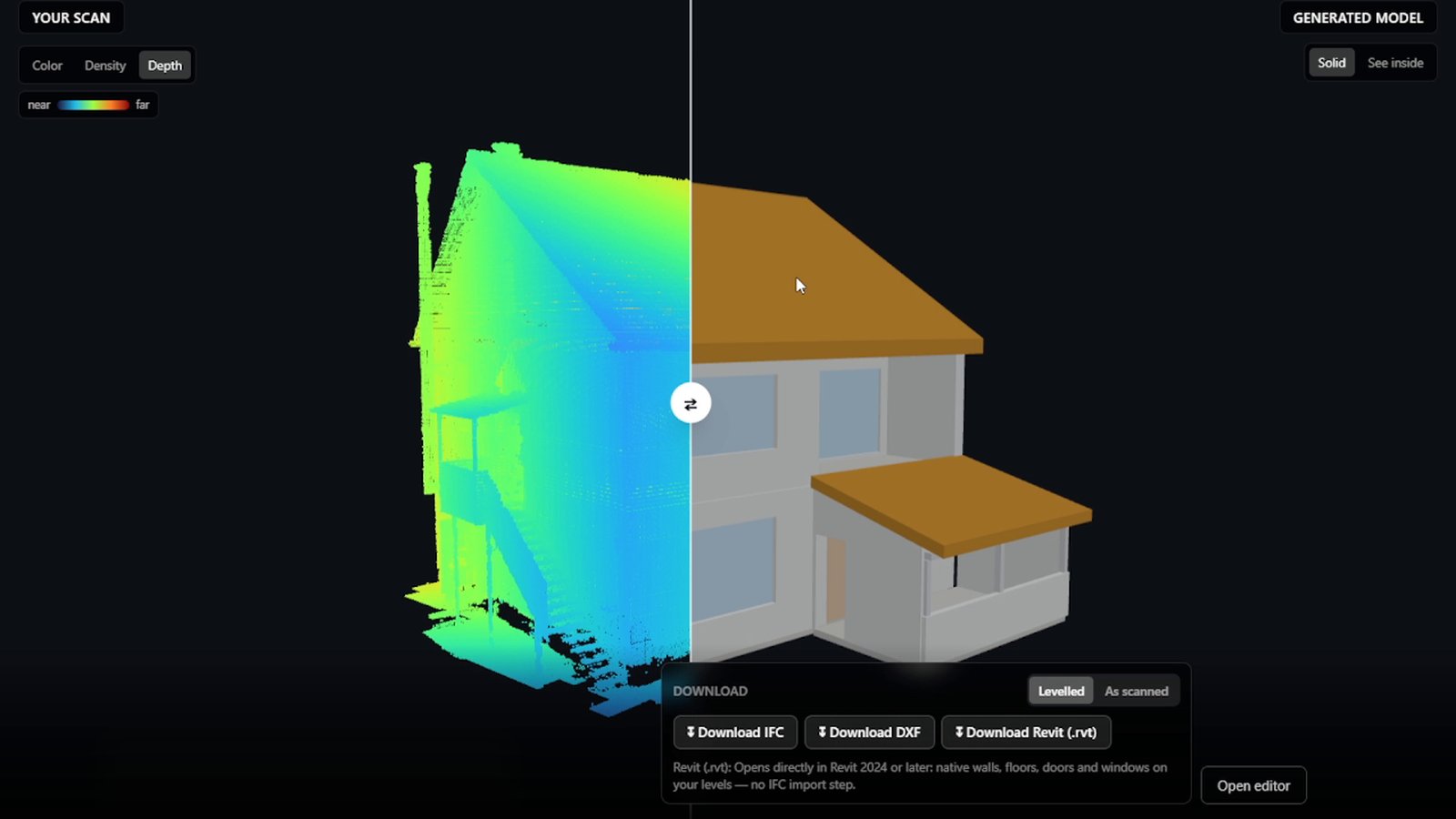

• Switch the scan between Color, Density and Depth views to see its shape clearly

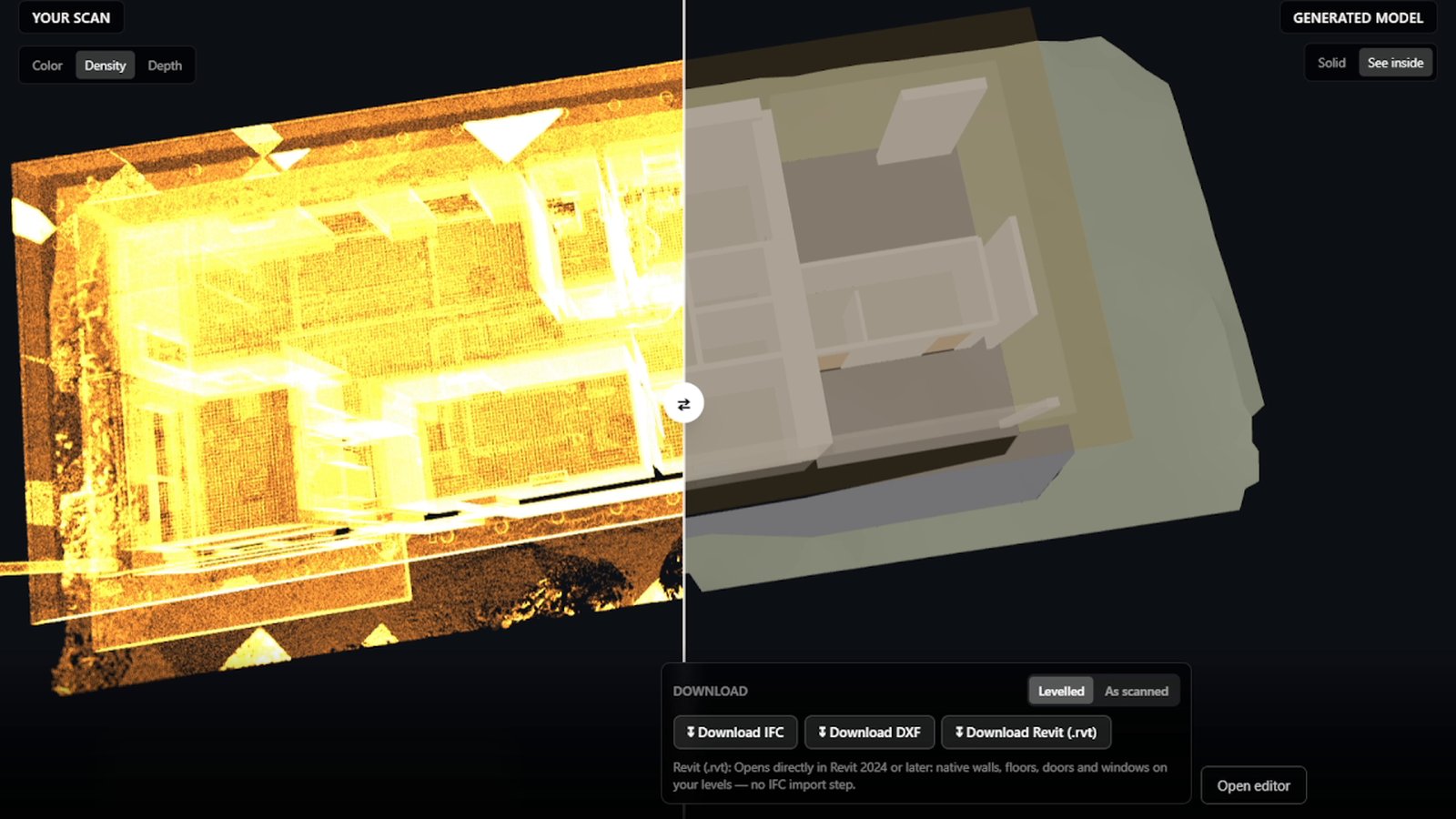

• Show the model Solid, or use See inside (roofs off, walls see-through) to check the rooms
• Rotate and zoom to check walls, openings, floors and roofs before you download anything

If something is missing, you see it here on your own points before you use the files.

Step 4: Download Your Files

The model was ordered when you uploaded, and your card is charged only when it is delivered, so the downloads are ready. You get all three files for the whole building, any number of stories, for one price:

• Revit model (RVT) - A native Revit file: opens in Revit 2024 or later with no IFC import step
• IFC (3D BIM model) - For ArchiCAD, Blender and other BIM tools, and for older versions of Revit
• DXF (2D floor plan for every story) - Ready for AutoCAD (save as DWG there), LibreCAD, or any CAD software

All three come from the same model. The DXF gives you a clean 2D plan of each story, while the RVT and IFC give you the full 3D model of the building, story by story. Working in Revit? Open the RVT directly, and see our guide on how to convert a point cloud to a Revit model for the whole workflow.

Step 5: Refine in Your CAD Software (Optional)

The AI does most of the work, and the files are a starting point for your drawings. You'll typically still:

• Add dimensions and annotations
• Add room labels and area calculations
• Check areas the scanner couldn't see well and fix them where needed
• Fine-tune door/window positions if needed

This refinement typically takes 30 minutes to 3 hours, depending on complexity. Compare that to the 6-8 hours of tracing a 200m² home takes by hand.

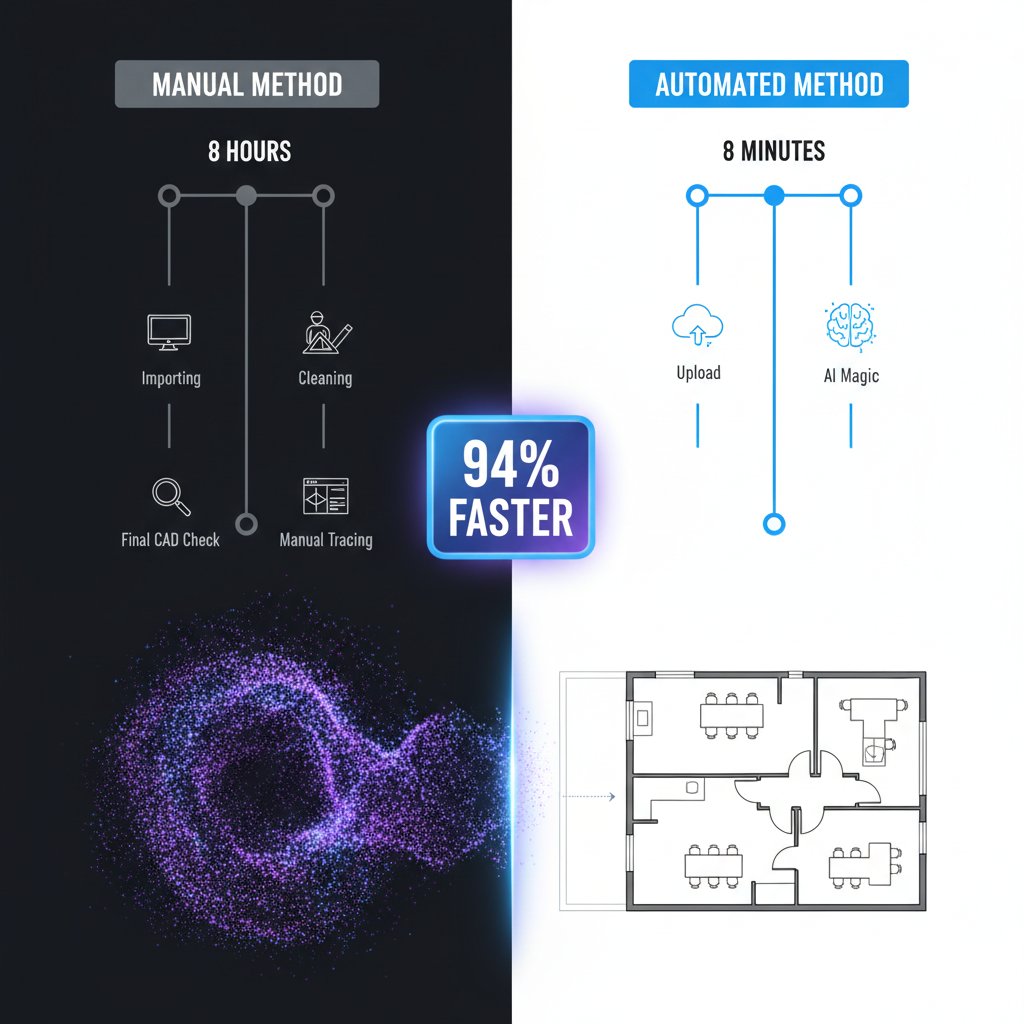

Comparison: Manual vs Automated Methods

Let's look at the real numbers. Here's a detailed comparison for different project sizes:

*$29 per scan, any number of stories, for the Revit (RVT), IFC and DXF files. You order the model when you upload, and your card is charged only when it is delivered; if the AI can't produce a reliable model, nothing is charged. Uploading and viewing your scan in 3D are free. Manual cost at $50 an hour.

Cost Example

For example, say you're a surveyor doing 10 as-built floor plans a month, at an average of 12 hours each by hand and $50 an hour for a technician's time:

Even if you outsource the manual tracing at, say, $400 per floor plan ($4,000 a month; drafting services usually price by floor area, so check your own quotes), you're still saving $3,210 a month with automation.

When to Use Each Method

Use Automated Conversion When:

• You need the whole building, inside and out, with every story from one upload
• You need a quick turnaround (the model usually arrives within a few hours)
• Cost efficiency is important
• You're doing multiple floor plans regularly
• You want consistent, repeatable results
• You need a Revit model as well as floor plans
• Your scans are from handheld LiDAR (SatLab, GeoSLAM, BLK2GO) or terrestrial scanners (Faro, Leica)

Stick with Manual Tracing When:

• You need survey-grade precision (sub-centimeter accuracy)
• You need building services (pipes, ducts, electrical) in the model; automated conversion covers the building itself
• You need highly detailed annotations and custom symbols
• The project requires extensive customization beyond basic floor plans

Best Practices for Point Cloud to Floor Plan Conversion

Whether you choose manual or automated methods, these tips will help you get better results:

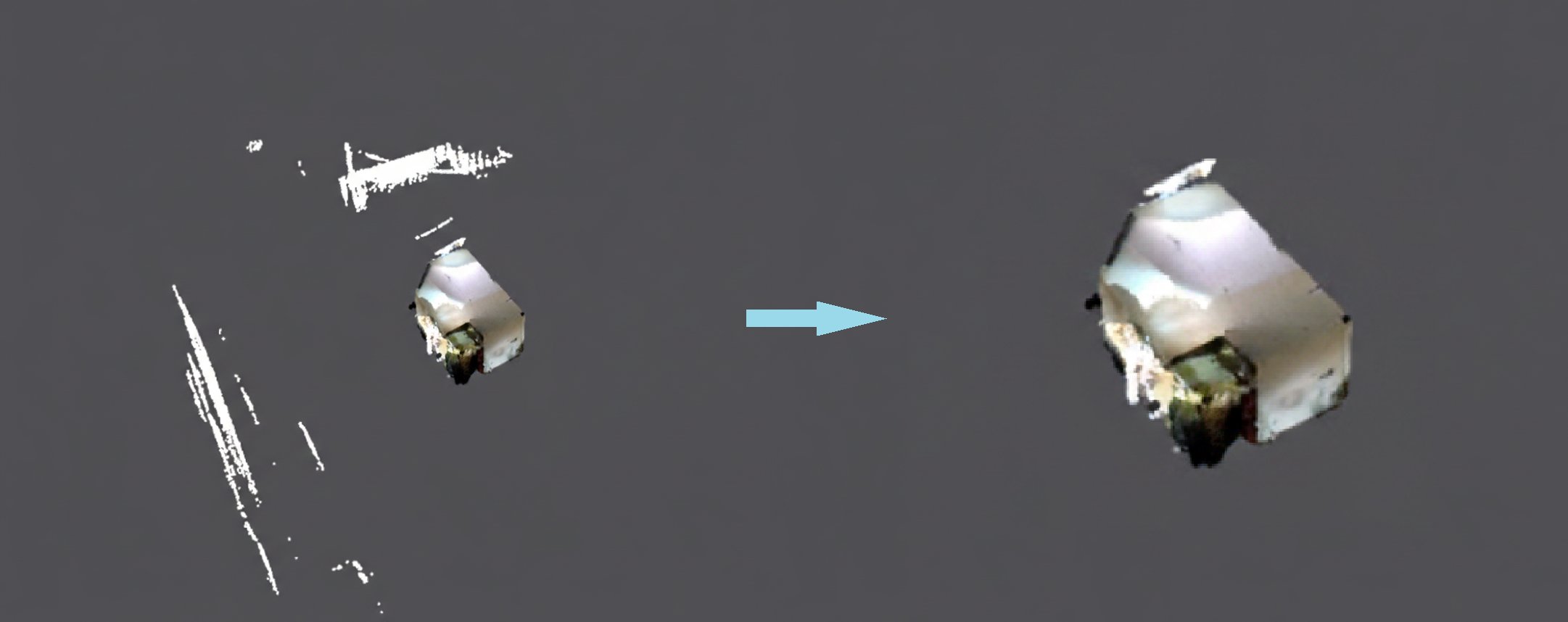

1. Start with Clean Point Cloud Data

Good input = good output. Before converting:

• Remove noise and outliers using CloudCompare or similar tools
• Ensure proper registration if using multiple scan positions
• Check that the point cloud has adequate density (especially for walls)
• Remove or mask moving objects (people, vehicles) if possible

2. Choose the Right Format

ScanToBIM-CAD takes E57, LAS, LAZ and PLY files. If you have RCP files from ReCap Pro, export them to E57 first. For FARO .fls and other native scanner formats, export E57 from the scanner's software (FARO SCENE, for example).

3. Multi-Story Buildings Are Handled For You

You don't need to cut a multi-story scan into floors. Stories are found in the point cloud itself, so a three-story building comes back from one upload as one Revit and IFC model of the whole building plus a DXF floor plan for each of the three stories, for one price.

4. Verify Results Before Finalizing

Always review the generated floor plan against the original point cloud. Check:

• Wall positions and thickness
• Door and window locations
• Room boundaries and connections
• Missing or extra walls

5. Use Appropriate Wall Thickness

Standard wall thicknesses vary by building type:

• Interior partitions: 100-150mm (4-6 inches)
• Exterior walls: 200-300mm (8-12 inches)
• Load-bearing walls: 200-400mm (8-16 inches)

Whichever method you use, check wall thicknesses against the scan and adjust them in your CAD or BIM software during refinement if needed.

Common Challenges and Solutions

Challenge 1: Noisy or Incomplete Scans

Problem: Point clouds with gaps, noise, or low density make it hard to detect walls accurately.

Solution: Pre-process your point cloud in CloudCompare to remove outliers and fill small gaps. Make sure wall surfaces are covered densely and without large gaps, ideally with a point every centimeter or two.

Challenge 2: Diagonal or Curved Walls

Problem: Diagonal and curved walls are slow to trace by hand: a curve needs arcs or many short segments that follow the points, and angled corners are easy to get wrong.

Solution: Let automated conversion do it. ScanToBIM-CAD models straight, diagonal and curved walls, so you check them against the scan instead of drawing them.

Challenge 3: Complex Room Shapes

Problem: Non-rectangular rooms (L-shaped, angled, curved) take many more segments to trace by hand, and every extra corner is a chance for a gap or an overlap.

Solution: Let the automated model do the tracing, then compare it with the scan. Fix anything the scan covered poorly in your CAD or BIM software; you're still saving hours of initial tracing work.

Challenge 4: Multi-Story Buildings

Problem: Tracing a multi-story building by hand means isolating each floor in the point cloud and drawing every story separately.

Solution: If you trace by hand, use a section box or a height (Z) filter in your CAD software or CloudCompare to view one floor at a time. With ScanToBIM-CAD, upload the whole scan as it is: the stories are found in the point cloud, and you get one model of the whole building plus a DXF floor plan for each story.

The Future of Point Cloud to Floor Plan Conversion

AI-powered conversion is rapidly improving. What used to take days of tracing now runs unattended in a few hours. As machine learning models get better, we can expect:

• Automatic detection of room types and labels
• Integration with building codes and standards
• Real-time processing for live scanning workflows

The technology is already here. The question isn't whether to automate—it's how quickly you can adopt it to stay competitive.

Conclusion: Choose the Right Tool for Your Workflow

Converting point clouds to floor plans doesn't have to take days of tracing. With AI-powered automation, you can have a model of the whole building within a few hours, while you work on something else.

For most as-built documentation projects, inside and out, automated conversion is the clear winner:

• About 1 hour of review instead of 6-8 hours of tracing for a 200m² home
• 87% lower cost in the monthly example above
• Revit (RVT), IFC and DXF of the whole building from one upload
• No extra software licenses for the conversion
• Accessible to teams of all skill levels

The manual method still has its place for highly specialized projects requiring survey-grade precision or extensive customization. But for the vast majority of floor plan creation tasks, automation is the smart choice.

Ready to try it yourself? Upload a scan to ScanToBIM-CAD and get the Revit, IFC and DXF files of the whole building for $29 per scan, charged only when the model is delivered.
